Sony WM-DD hex take-up assembly part

Description

Item: Sony WM-DD hex take-up assembly part

This spare part solves issue with cracked take-up hex-shaped part.  On the original part, there are usually several small cracks. They prevent the take-up small FF gear from moving freely up and down. The part is 3D printed on the printer with 0.01 mm accuracy. Material used is ABS-like resin. The surface is smooth and very accurate, almost indistinguishable from the original.

From my experience, almost all these parts have several cracks on the surface

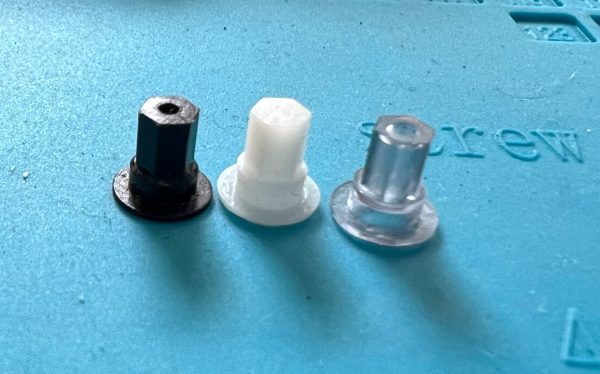

The price is for ONE part only. There are more in the product image, for illustration purposes only.

This part can be used in the following models: WM-2, WM-F2, WM-R2, WM-5, WM-F5, WM-DD, WM-DDII, WM-DDIII, WM-D3, TCM-D3, WM-DC2, WM-DD100, WM-DD30 and WM-DD33

Get your spare parts to be able to fix your cassette player. Check our General Repair Instructions to find basic information about tools and skills needed to repair your player.

Unlike modern electronics, your player was built to last for decades. However, even this player contains some parts that deteriorate and you need to replace them. To fix it, you will need to perform some routine tasks, like replace rubber parts,  do cleaning and lubrication. Finally, you should adjust and check azimuth, output level and speed. Read our Instructions section to learn more about repairs.

Cannot find your part here? First of all, try to find it using our search form. If you cannot find it anyway, then measure dimensions of your part, visit appropriate shop category and choose part that has dimensions similar to your one. Still cannot find it? Use our inquiry form. Before you contact us, rather check other sources of useful information, first. We cannot guarantee to answer all technical questions because of time restrictions.

Most probable reasons of cassette player failure

• Aged belt – needs to be replaced, there is no other help.
• Pinch roller – clean it well with IPA. If it doesn’t help, then you need to replace it.
• Corroded battery contacts – clean them well
• Volume pot oxidized – there are special sprays for that purpose. Apply only small drop, do not spray everything

Other: leaked capacitors, cracked plastic parts, old grease and oil turned into glue, dirty switches, dirt inside player, worn head (can be lapped), faulty electronics, damage caused by leaked battery, dry motor bearings

After each repair of cassette player, speed must be adjusted!
